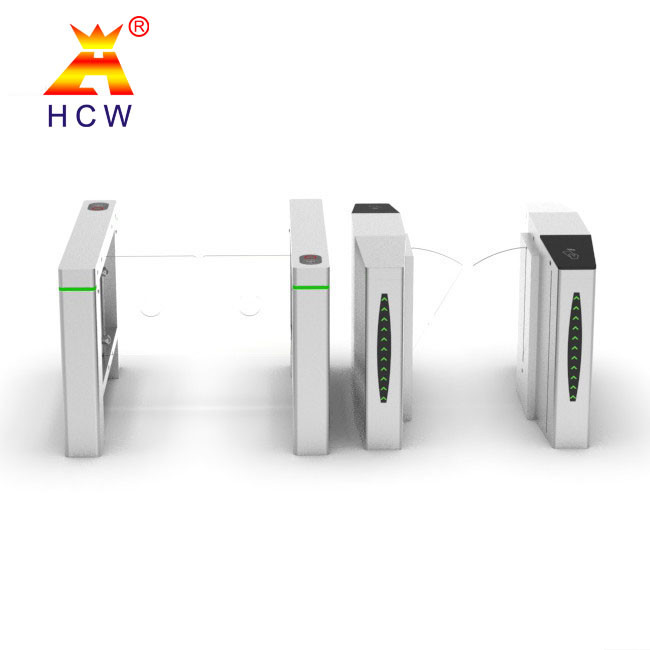

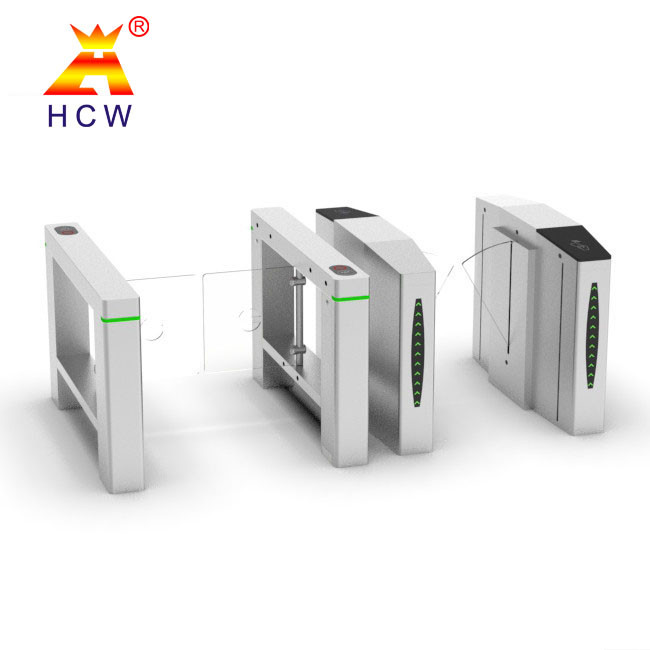

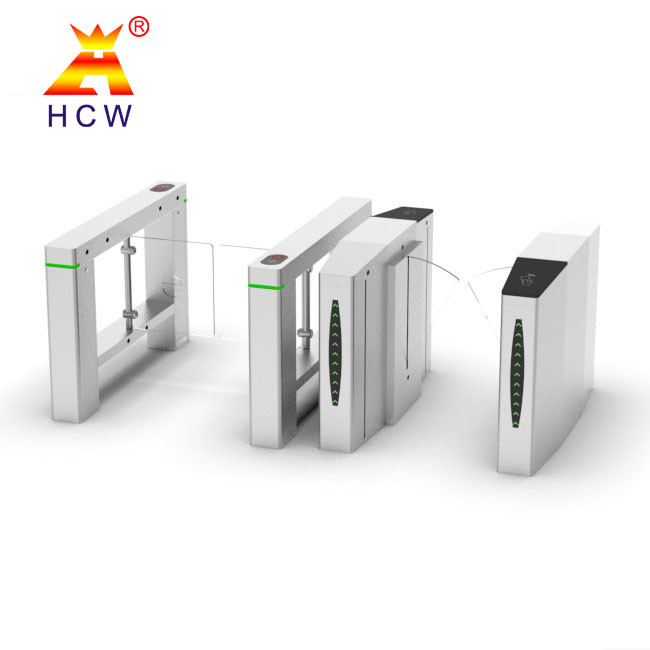

Smart RFID Card Flap Turnstile Gate Kontrol Akses Pejalan Kaki Untuk Gym
Kartu RFID Flap Turnstile Gate
,Gym Flap Turnstile Gate
,Flap pintu pagar keamanan pejalan kaki
Solusi Kartu RFID Pintu Masuk Cerdas Gerbang Putar Flap Penghalang Kontrol Akses Pejalan Kaki untuk gedung gym sekolah kereta bawah tanah
Deskripsi
Fungsi:
1. Metode kerja dapat diatur dengan tombol pada panel utama 2. Model ini adalah gerbang flap sayap ganda, kebisingan rendah, casing lebih kecil, hemat ruang 3. Anti-jepit oleh mekanisme dan sensor Jika ada blokir selama pengembalian gerbang, motor berhenti bekerja secara otomatis. Atur ulang lagi setelah penundaan default, gaya 2Kg. 4. Anti-ilegal masuk, anti-intrusi, tutup otomatis untuk arah sebaliknya. 5. Anti-tabrakan, gerbang menutup saat tidak ada sinyal valid yang diberikan. 6. Gerbang dapat sinkron 7. Atur ulang otomatis. Jika tidak melewati dalam waktu yang telah ditetapkan, hak lulus akan dibatalkan secara otomatis. (1-60s dapat disesuaikan), waktu default adalah 10s. 8. Fungsi reset oleh sel foto, fungsi Anti-jepit oleh sel foto, (3 atau 5 pasang sensor) 9. Kompatibel dengan sistem kontrol Akses, sistem konsumsi, sistem ESD, sistem E-tiket, dan sebagainya. 10. Kontrol satu arah atau dua arah 11 Unit dapat dikontrol dan dikelola oleh remote control
| Parameter teknis | |
| Nomor produk | CW507 |
| Tegangan | AC220V±10%, 50HZ±10% HZ |
| Suhu kerja | ‘-25℃-70℃ |
| Kelembaban relatif | 5%--90% |
| Motor | DC tanpa sikat 40W |
| Daya terukur | 70W |
| Sinyal kontrol input | Jumlah sakelar (konfigurasi standar tidak termasuk RS232, 485) |
| Kecepatan lari | 30-40 orang/menit |
| Sinar inframerah | 4 pasang |
| Jumlah operasi tanpa masalah | 5 juta kali |
| Rentang hidup rata-rata | 6 juta kali |
| Lebar saluran | 600mm |
| Bahan lengan ayun | Panel pintu akrilik 15mm |
| Ukuran produk | 1400*300*990mm |
| Rangka saluran | Baja tahan karat 304 tebal 1,2~1,5mm |
| Berat paket | Sekitar 65 KG (jalan sisi tunggal) |
IP57 Otomatisasi Keamanan Pintu Masuk Flap Barrier Turnstile Gate
IP57 Automatic Flap Barrier Turnstile Gate Entrance Security Automation Cw501 Intelligent octagonal inclined plane wing turnstile, use TC CPU chip, DC brushed motor, 3 pairs of infrared detection sensors, long life and high stability, high efficiency and anti-tailing, support various IC/ID card readers, barcode readers, ID cards Readers, etc., easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers, government
SS304 Pedestrian Turnstile Gate Sistem Kontrol Akses TK
Wing gate pedestrian passage gate Kindergarten access control system The equipment organically integrates machinery, electronics, microprocessor control and various identification technologies. The LED counting display interface, coordinated to realize the intelligent control and management of the channel, etc. The intelligent swing gate can be easily compatible with the use of IC cards, ID cards, barcode cards, fingerprints and other card-reading and identification devices,
Gym Smart RFID Card Flap Barrier System Kontrol Akses Gerbang Pintu Putar
Smart Entrance RFID Card Solutions Pedestrian Access Control Barrier Flap Turnstile Gate for gym building school subway Description Function: 1. working method can be set by the buttons on the main panel 2. This model is double wing flap gate, low noise, smaller casing, save space 3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg. 4.Anti-illegal in, anti-intrusion,
Dua Arah Flap Barrier Turnstile Face Recognition Pengukuran Suhu Dinamis
Dynamic temperature measurement face recognition wing turnstile gate Automatic reset, no reset within the specified time Anti-pinch, automatic rebound when encountering resistance Anti-trailing, accurate memory of the number of passersby Anti-collision, the swing gate is locked without receiving the opening signal Access mode, two-way card swiping, face recognition access Intrusion alarm, continuous alarm will be issued when intrusion Direction indication, LED light to pass
