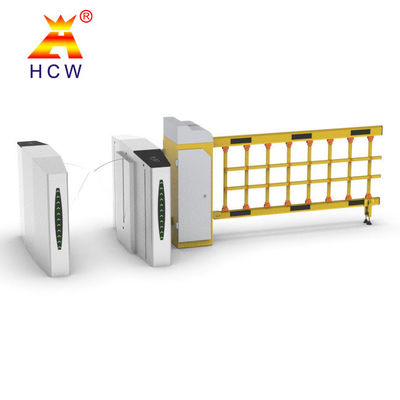

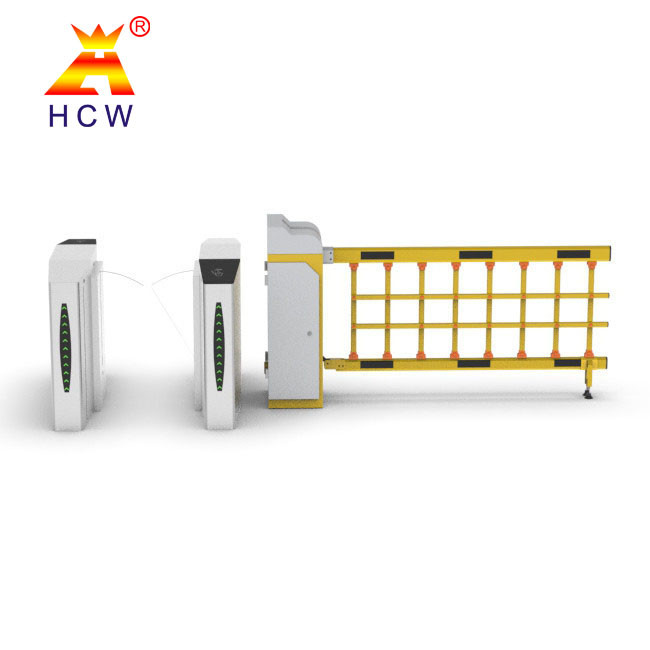

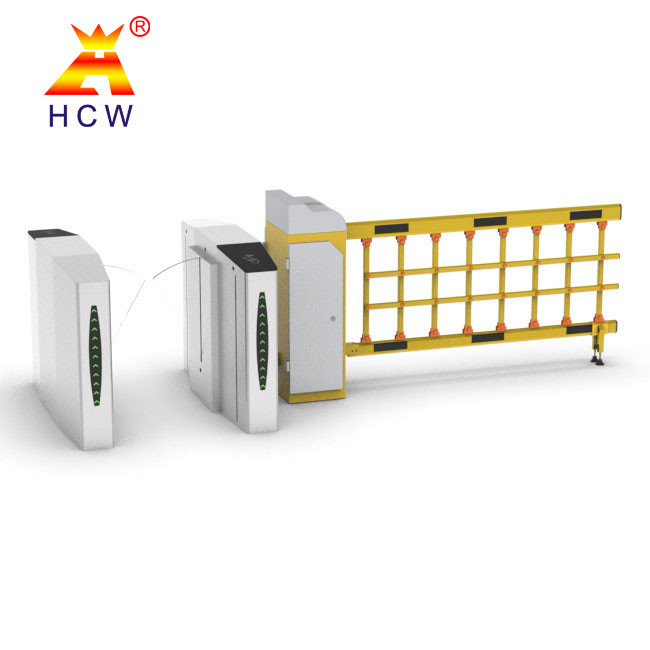

Otomatis RFID Turnstile Gate Pejalan Kaki Gerbang Pengukuran Suhu Motor DC DC24V
Gerbang Pintu Putar RFID Otomatis
,Pengukuran Suhu Gerbang Pintu Putar RFID
,gerbang pengukuran suhu DC24V
Mesin pengukur suhu pejalan kaki otomatis RFID
Fitur
Tegangan catu daya: AC220±10%V, 50HZ; Motor drive: DC motor DC24V;
Lingkungan kerja: -25°C-+70°C Kecepatan melewati: tinggi 20-40 orang/menit;
Waktu beralih: 0,2 detik; suhu relatif: 5% - 90% tanpa kondensasi;
Ukuran gerbang: 1400*290*1000mm; lebar saluran: 600MM;
Tidak ada waktu kegagalan: lebih dari 1,5 juta kali; waktu yang dibutuhkan untuk memasuki keadaan lalu lintas setelah menyalakan: 1 ~ 3 detik
Tahan air dan debu: kelas di atas IP32; kebisingan kerja: di bawah 55 desibel;
Kesalahan self-test: waktu reset otomatis setelah kesalahan: 6 ~ 10 detik
Bahan sasis: 304 stainless steel, ketebalan 1,2MM;
Antarmuka masukan: sinyal switch relay atau sinyal tingkat 12V atau sinyal pulsa 12V dengan lebar pulsa> 100ms, arus drive> 10mA
Keuntungan Flap Barrier:
1Fungsi pemeriksaan diri masalah.
2. Pusing lengan: Bi-arah
3. Ketika daya off, lengan terbuka secara otomatis dan daya pada lagi, lengan akan ditahan secara otomatis.
4. Ketika kartu valid dibaca dan penumpang lulus, lengan dapat ditunda untuk menutup dari 1-60s yang dapat
diatur di panel kontrol.
5. Fungsi auto-reposition: Setelah membaca kartu, penumpang tidak melewati dalam waktu yang diatur, turnstile
akan membatalkan pesanan secara otomatis. dan waktu yang diatur dapat diatur oleh manajer.
6. anti-rush fungsi: jika tidak ada sinyal terbuka, lengan akan memegang erat.
7- Berjalan stabil dengan sedikit kebisingan.
| Radio inframerah | 5 pasang |
| operasi tanpa masalah | 2 juta kali |
| Rata-rata umur | 3 juta kali |
| Lebar saluran | 850 mm |
| Bahan sayap pintu | Sipung sayap lunak |
| Ukuran produk | panjang 1200 mm x lebar 300 mm x tinggi 990 mm |
| Bingkai saluran | 304 stainless steel |
| Berat kemasan | sekitar 65 KG (lane sisi tunggal) |
IP57 Otomatisasi Keamanan Pintu Masuk Flap Barrier Turnstile Gate
IP57 Automatic Flap Barrier Turnstile Gate Entrance Security Automation Cw501 Intelligent octagonal inclined plane wing turnstile, use TC CPU chip, DC brushed motor, 3 pairs of infrared detection sensors, long life and high stability, high efficiency and anti-tailing, support various IC/ID card readers, barcode readers, ID cards Readers, etc., easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers, government
SS304 Pedestrian Turnstile Gate Sistem Kontrol Akses TK
Wing gate pedestrian passage gate Kindergarten access control system The equipment organically integrates machinery, electronics, microprocessor control and various identification technologies. The LED counting display interface, coordinated to realize the intelligent control and management of the channel, etc. The intelligent swing gate can be easily compatible with the use of IC cards, ID cards, barcode cards, fingerprints and other card-reading and identification devices,
Gym Smart RFID Card Flap Barrier System Kontrol Akses Gerbang Pintu Putar
Smart Entrance RFID Card Solutions Pedestrian Access Control Barrier Flap Turnstile Gate for gym building school subway Description Function: 1. working method can be set by the buttons on the main panel 2. This model is double wing flap gate, low noise, smaller casing, save space 3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg. 4.Anti-illegal in, anti-intrusion,
Dua Arah Flap Barrier Turnstile Face Recognition Pengukuran Suhu Dinamis
Dynamic temperature measurement face recognition wing turnstile gate Automatic reset, no reset within the specified time Anti-pinch, automatic rebound when encountering resistance Anti-trailing, accurate memory of the number of passersby Anti-collision, the swing gate is locked without receiving the opening signal Access mode, two-way card swiping, face recognition access Intrusion alarm, continuous alarm will be issued when intrusion Direction indication, LED light to pass
