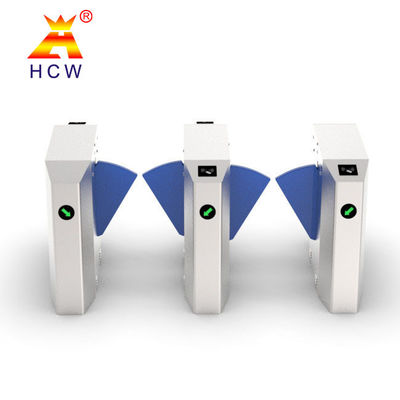

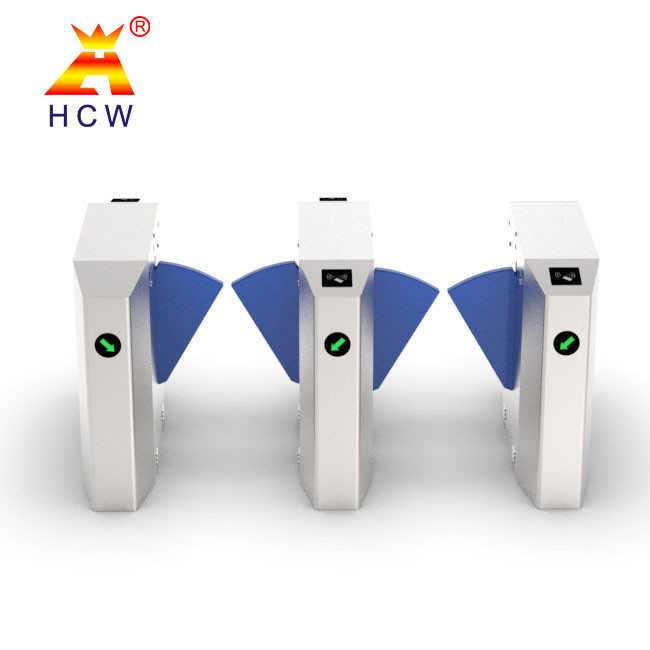

Bandara SS304 Flap Barrier Turnstile Sistem Kontrol Akses Pejalan Kaki
SS304 Flap Barrier Turnstile
,25W Airport Flap Barrier Turnstile
,SS304 Airport Turnstile
SS304 Flap Barrier Turnstile Pedestrian Access Control System 20W Untuk Bandara
Perangkat yang dirancang untuk membantu pengendalian akses pejalan kaki di jalan-jalan yang diawasi di dalam bangunan.,jalur untuk personel yang berwenang, mengarahkan lalu lintas penumpang, titik kontrol akses di bangunan yang aman (misalnya kantor negara seperti titik penyeberangan perbatasan, layanan lainnya),titik kontrol tiket dan biaya di museum, teater, bioskop, pameran, area pameran, fasilitas pertunjukan, toilet berbayar, titik kontrol tiket di fasilitas olahraga, misalnya kolam renang, stadion, fasilitas olahraga dan pertunjukan lainnya,titik kontrol akses dan kehadiran waktu di tempat kerja, misalnya kantor, area khusus di pabrik
Dengan fungsi deteksi diri, diagnosis diri, dan alarm otomatis; fungsi alarm suara dan cahaya, termasuk alarm intrusi ilegal, alarm anti-pinch, dan alarm anti-tailing
Ketika listrik dipotong, sayap pintu secara otomatis mundur ke dalam sasis, koridor berada dalam keadaan bersih dan personel dapat melewati bebas untuk mencegah kepanikan
Dengan fungsi reset otomatis, setelah membuka pintu,Sistem akan secara otomatis membatalkan izin pengguna untuk melewati waktu ini dan mengatur waktu lulus jika pengguna tidak melewati dalam waktu yang ditentukan
PenerapanGerbang Penghalang Flap
- pintu masuk lobi
- Subway
- Bandara
- Stasiun
- Perpustakaan
- Toko buku
- Taman
- Ruang pameran
- Stadion
- Museum
- Apartemen
- Wilayah tempat tinggal
- Kantor
- Bangunan komersial.
Parameter
| Parameter teknis | |
| Nomor produk | CW510 |
| Tegangan | AC220V±10%, 50HZ±10% HZ |
| Suhu kerja | ️-25°C- 70°C |
| Kelembaban relatif | 5% - 90% |
| Kekuatan nominal | 20W |
| Arah perjalanan | Satu arah atau dua arah |
| Sinyal kontrol masukan | Jumlah switch (konfigurasi standar tidak termasuk RS232, 485) |
| Kecepatan berjalan | 30-40 orang/menit |
| Sinar inframerah | 3 pasang |
| Jumlah operasi tanpa masalah | 3 juta kali |
| Rata-rata umur | 4 juta kali |
| Lebar saluran | 550 mm |
| Bahan lengan ayunan | Panel pintu akrilik 10 mm |
| Ukuran Produk | 1200*280*990mm |
| Bingkai saluran | 1.0mm tebal 304 stainless steel |
| Berat paket | Sekitar 55 KG (jalan samping tunggal) |
