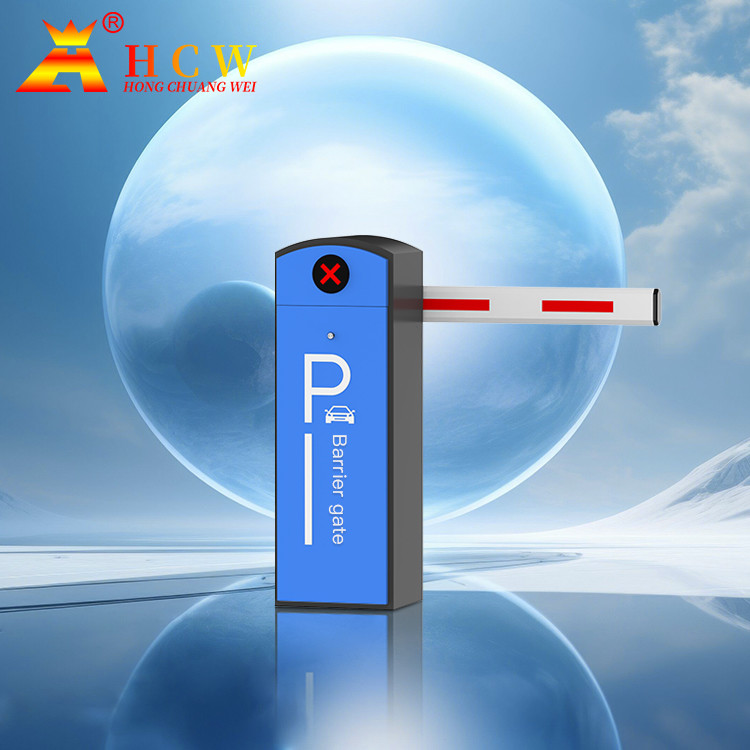

100W DC Brushless Automatic Lane Barrier Parking Boom Barrier Dengan Tiang Lurus
Penghalang Jalur Otomatis 100W
,Penghalang Jalur Otomatis DC Brushless
,Penghalang Boom Parkir Otomatis
DC Brushless Boom mobil Parkir rm Gerbang Penghalang
Karakteristik produk
daya off, maka boom dapat diangkat langsung.
2Tidak ada desain switch batas: motor dapat mendeteksi posisi boom secara otomatis.
3Desain pemegang boom dua arah: instalasi kiri dan instalasi kanan dapat ditukar dengan mudah dan cepat.
4.Tiga pegas yang tersedia dapat memperpanjang umur layanan pegas.
5Penghalang deteksi otomatis tutup setelah menyalakan, kecepatan buka/tutup diatur.
6Dengan otomatis membalik pada fungsi penghalang.
7. Infrared antarmuka sel foto tersedia.
8. antarmuka detektor loop tersedia, untuk menghindari menabrak kendaraan, dan mengontrol boom jatuh secara otomatis setelah kendaraan melewati. (harus memasang detektor loop)
10. Dibangun dalam fungsi penundaan otomatis penutupan, dikoordinasikan dengan fungsi penghitungan, jika nomor kendaraan melewati kurang dari nomor yang tersimpan, boom akan turun secara otomatis dengan hitungan mundur,tapi akan hitung mundur baru jika ada up atau sinyal detektor loop.
11. Interface komunikasi RS485 terintegrasi, untuk mewujudkan kontrol pembatas terbuka / dekat oleh komputer dan pertanyaan status pembatas.
12. Interface jaringan RJ45 terintegrasi, untuk mewujudkan kontrol hambatan pembukaan / penutupan hambatan oleh jaringan komputer dan pertanyaan status hambatan.
13.Dengan fungsi uji auto-penuaan.
14. NO/NC input sinyal kontrol kawat adalah opsional.
| Parameter teknis | |
| Model | CW228 |
| Sumber daya listrik | AC220V ± 10%, 50Hz |
| Suhu kerja | -25°C~+70°C |
| Kelembaban lingkungan | 5% ~ 95% |
| Arah | arah kiri dan kanan |
| Panjang tiang | ≤ 6m tiang lurus,≤ 6m tiang melengkung,≤ 5,5m dua tiang,≤ 4,5m tiga tiang |
| Motor | Kondensator yang menjalankan motor asinkron |
| Kapasitas nominal | 8uF/450V |
| Motor rate | 80W, 120W |
| Waktu naik dan turun | 1s-3s |
