HCW Stainless Steel Full Height Turnstile with Programmable Control Power Off Unlocking and Durable Construction
| Tempat asal | Shenzhen, Tiongkok |
|---|---|
| Nama merek | Hongchuangwei |
| Sertifikasi | CE |
| Nomor model | CW804 |
| Kuantitas min Order | 1 |
| Harga | dapat dinegosiasikan |
| Kemasan rincian | kotak kayu |
| Waktu pengiriman | 7-15 hari Kerja |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 100 buah per hari |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Aplikasi | Luar Ruang & Dalam Ruangan | Catu Daya | AC 220V/110V 10% 50/60MHz |
|---|---|---|---|
| Kebersihan relatif | <95%, tidak ada kepadatan | Berat | 270kg |
| Kehidupan Pelayanan | ≥6 juta kali | Arah lalu lintas | lalu lintas satu arah atau dua arah |
| Panjang pagar | 600mm | ||
| Menyoroti | Programmable Control Full Height Turnstile,Power Off Unlocking Security Gate,Durable Turnstile Gate |
||
Deskripsi Produk
HCW Full Height Turnstile Stainless Steel Security Gate
Programmable One Way or Two Way Control with Power Off Unlocking
The HCW Full Height Turnstile is a durable, high-security stainless steel gate featuring programmable access control and fail-safe power-off unlocking. Designed for maximum security and reliability in demanding environments.
Key Features

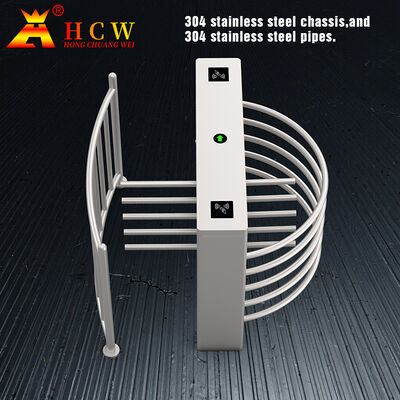

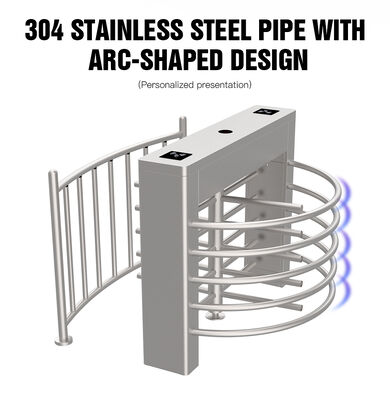

- Constructed with SUS304 stainless steel for superior durability and corrosion resistance
- Luxurious appearance with sturdy, long-lasting construction
- Customizable installation interface compatible with magnetic cards, barcodes, and ID card readers
- Smooth operation with soft buffering and low noise operation
- White heavy zinc acid electroplating for rust-proof protection
- Programmable control with multiple working modes (one-way or two-way)
- Power-off unlocking feature for emergency access
- Standard external electrical interface for easy system integration
- Sensitive impact detection for enhanced safety
- Designed for 10 million opening/closing cycles
- Automatic self-locking after passage
Applications

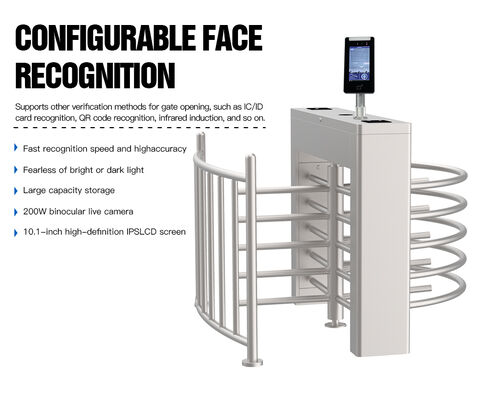

Ideal for railway stations, banks, high-end clubs, offices, gyms, swimming pools, and other secure areas. Supports RFID, fingerprint, and facial recognition systems. Can be integrated with infrared detectors and temperature controllers for various environments.
Technical Specifications
| Model | CW804 |
|---|---|
| Power Supply | AC220+10% 50HZ |
| Power Consumption | Static <50W, Dynamic <100W |
| Rotation Direction | One-way or two-way |
| Traffic Direction | One-way or two-way |
| Communication Interface | 232, RS485 |
| Components | Standard case, 90° revolving door, control panel, movement, motor |

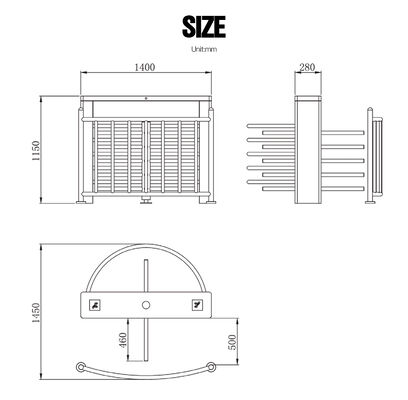

| Dimensions | 1400×1450×1150mm (Chassis: 1400×280×1150mm) |

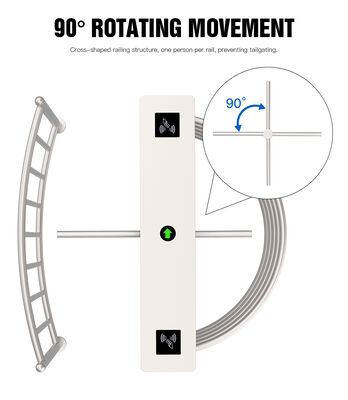

| Barrier Length | 600mm (90° barrier) |
| Swing | ≤600mm |
| Opening Time | Not adjustable |
| Capacity | 20 persons/minute |
| Operating Temperature | -25℃ to +70℃ (humidity ≤95%) |
| Auto Reset | Adjustable time limit for automatic locking |
Product Images
